交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

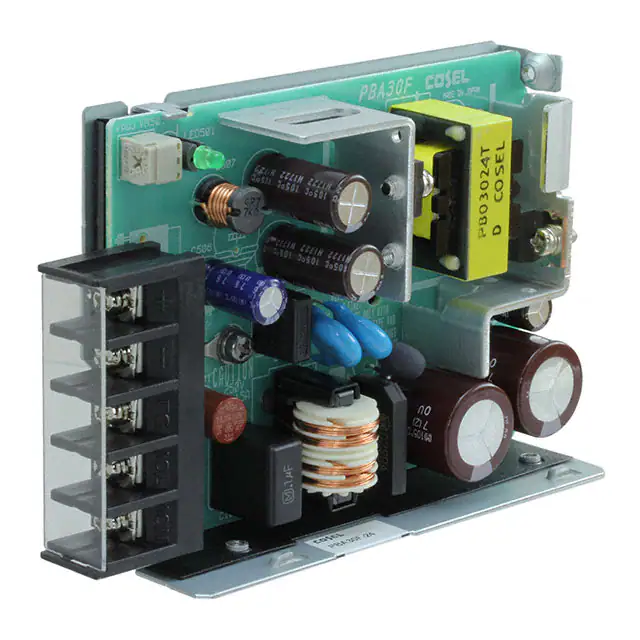

PBA30F-12AC/DC CONVERTER 12V 30W |
476 |
|
数据手册 |
PBA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
|
PBA30F-24AC/DC CONVERTER 24V 30W |
128 |
|
数据手册 |
PBA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 30W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
ECS60US15AC/DC CONVERTER 15V 60W |
906 |
|
数据手册 |
ECS (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | ||
|
CUT35-522/AAC/DC CONVERTER 5V +/-12V 35W |
2,509 |
|
数据手册 |
CUT35 (35W) | Bulk | Active | Enclosed | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 850 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | -20°C ~ 60°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.92" L x 2.48" W x 1.42" H (125.0mm x 63.1mm x 36.0mm) | ||
|
RACM30-12SER/WAC/DC CONVERTER 12V 30W |
103 |
|
数据手册 |
MEDLINE RACM30-ER/W (30W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4.4 kV | -20°C ~ 70°C (With Derating) | IP68, Universal Input | Chassis Mount | 2.09" L x 2.00" W x 1.34" H (53.0mm x 51.0mm x 34.0mm) | ||
|
CFM150S280AC/DC CONVERTER 28V 120W |
119 |
|
数据手册 |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 4.28 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | ||
|
|
CFM150S360AC/DC CONVERTER 36V 120W |
3,841 |
|
数据手册 |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | ||
|
|
CFM150S480AC/DC CONVERTER 48V 120W |
1,028 |
|
数据手册 |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | ||
|
|
CFM150S120AC/DC CONVERTER 12V 120W |
1,165 |
|
数据手册 |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | ||
|
RSP-200-36AC/DC CONVERTER 36V 200W |
122 |
|
数据手册 |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

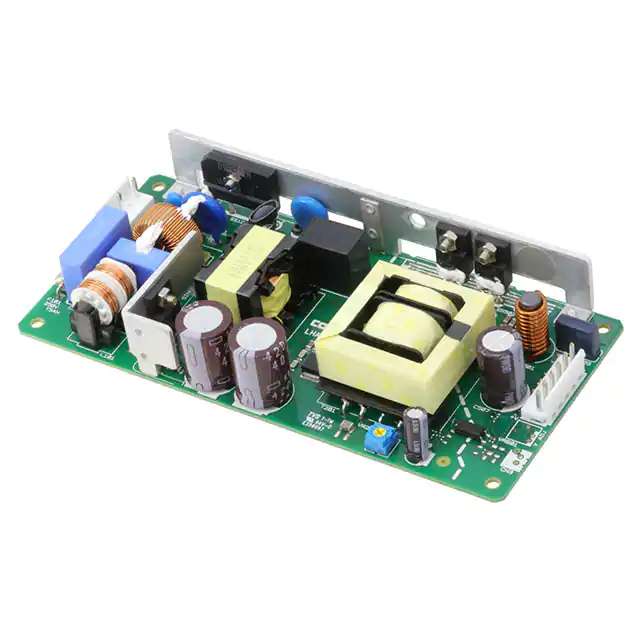

LHA150F-36AC/DC CONVERTER 36V 151W |
4,468 |
|
数据手册 |
LHA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) | ||
|
CFM130S240AC/DC CONVERTER 24V 101W |
4,519 |
|
数据手册 |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | ||
|
|
RACM30-24SER/WAC/DC CONVERTER 24V 30W |
4,571 |
|
数据手册 |
MEDLINE RACM30-ER/W (30W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4.4 kV | -20°C ~ 70°C (With Derating) | IP68, Universal Input | Chassis Mount | 2.09" L x 2.00" W x 1.34" H (53.0mm x 51.0mm x 34.0mm) | ||
|
PSC-160B-CAC/DC CONVERTER 27.6V 27.6V 160W |
149 |
|
数据手册 |
PSC-160 (160W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27.6V | 27.6V | - | - | - | - | 3.8 A | 2 A | - | - | - | - | 160W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.12" L x 3.35" W x 1.46" H (155.4mm x 85.0mm x 37.0mm) | ||
|
LFWLT40-3000AC/DC CNVT 5.2V 12.5V -12.8V 63W |
222 |
|
数据手册 |
WLT40 (40W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 6 A | 2 A | 500 mA | - | - | - | 63W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|

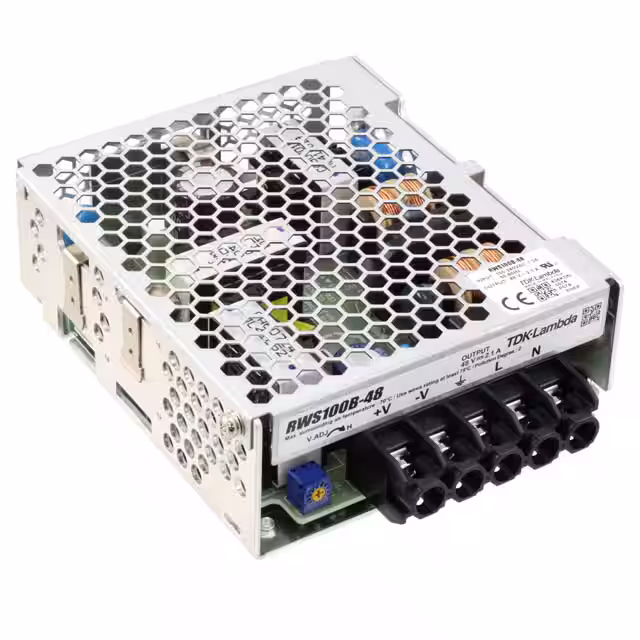

RWS100B-48AC/DC CONVERTER 48V 100W |
1,514 |
|
数据手册 |
RWS-B (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.25" L x 3.70" W x 1.54" H (108.0mm x 94.0mm x 39.0mm) | ||
|

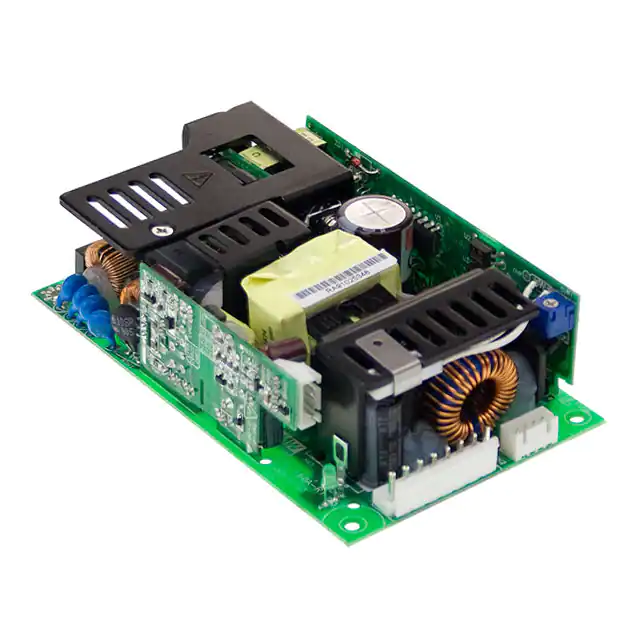

RPS-160-12AC/DC CONVERTER 12V 109W |
2,577 |
|
数据手册 |
RPS-160 (160W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 9.1 A | - | - | - | - | - | 109W (155W Forced Air) | Household Appliances, Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) | ||
|
LHA75F-12AC/DC CONVERTER 12V 76W |
3,140 |
|
数据手册 |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | ||
|
LHA75F-3R3-YAC/DC CONVERTER 3.3V 40W |
4,307 |
|
数据手册 |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | ||
|
|
LHA75F-24AC/DC CONVERTER 24V 77W |
2,096 |
|
数据手册 |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) |
