交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSP-750-15AC/DC CONVERTER 15V 750W |
2,446 |
|
数据手册 |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 50 A | - | - | - | - | - | 750W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
MAP40-3500GAC/DC CONVERTER 5V +/-12V 40W |
4,385 |
|
数据手册 |
MAP40 (40W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|

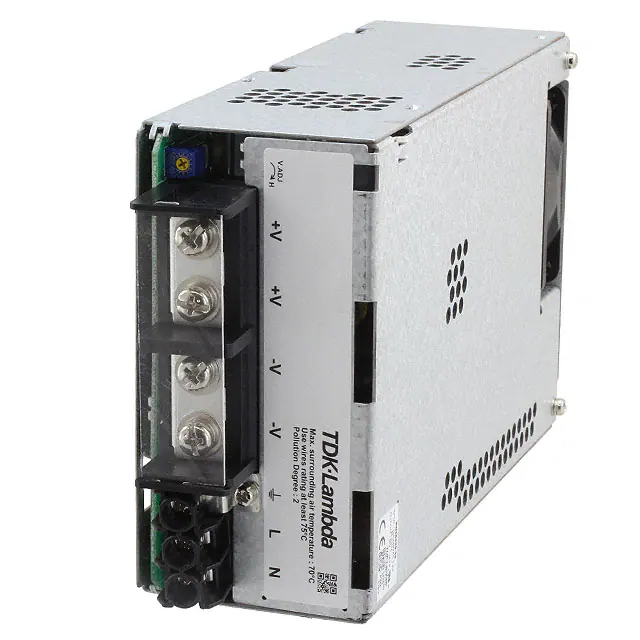

RWS600B-15AC/DC CONVERTER 15V 600W |
1,713 |
|
数据手册 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
HEP-480-54AAC/DC CONVERTER 54V 481W |
1,230 |
|
数据手册 |
HEP-480 (480W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 54V | - | - | - | - | - | 8.9 A | - | - | - | - | - | 481W | ITE (Commercial) | 3.75 kV | -55°C ~ 65°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm) | ||
|
GWS250-24AC/DC CONVERTER 24V 250W |
3,271 |
|
数据手册 |
GWS (250W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.80" L x 4.10" W x 1.61" H (198.0mm x 104.0mm x 41.0mm) | ||
|

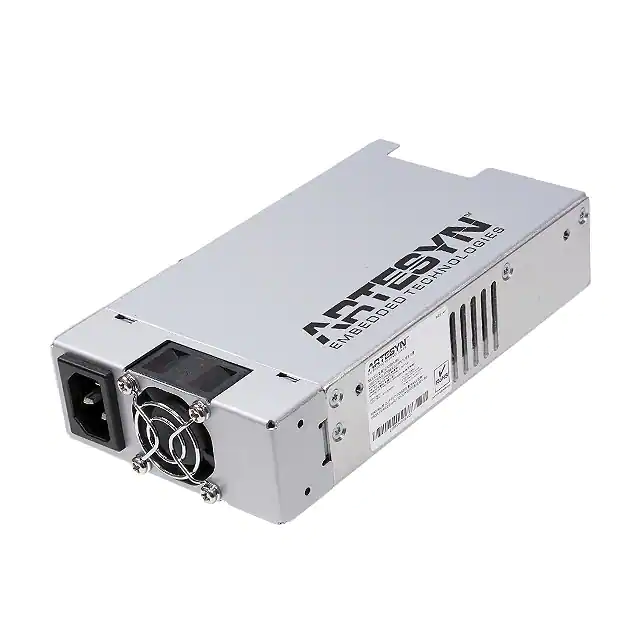

CNS653-MEAC/DC CONVERTER 12V 650W |
1,861 |
|
数据手册 |
CNS650-M (650W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 54.2 A | - | - | - | - | - | 650W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
PQU650M-28PAC/DC CONVERTER 28V 650W |
4,072 |
|
数据手册 |
PQU650M (650W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 23.2 A | - | - | - | - | - | 650W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.69" H (152.4mm x 101.6mm x 42.9mm) | ||
|
HCC512-AGAC/DC CONVERTER 5V 12V 60W |
125 |
|
数据手册 |
Linear CC | Bulk | Active | Linear | 2 | 100, 120, 220, 230, 240 VAC | 5V | 12V | - | - | - | - | 6 A | 2.5 A | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 9.38" L x 4.87" W x 3.28" H (238.3mm x 123.7mm x 83.3mm) | ||
|
MVAC400-12AFAC/DC CONVERTER 2X12V 5V 250W |
564 |
|
数据手册 |
MVAC400 (400W) | Box | Last Time Buy | Open Frame | 3 | 90 ~ 264 VAC | 12V | 12V | 5V | - | - | - | 33.3 A | 1 A | 2 A | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.0mm) | ||
|

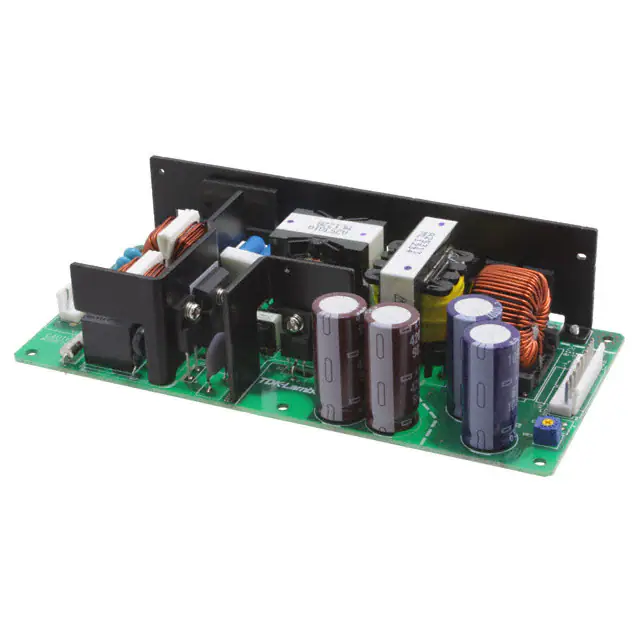

ZWS240BP-24AC/DC CONVERTER 24V 240W |
3,797 |
|
数据手册 |
ZWS-BP (240W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) | ||
|
MDS-350AD701 AA350W MEDICAL ATX FORM FACTOR POW |
1,190 |
|
数据手册 |
MDS-350 (350W) | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
TXLN 500-148AC/DC CONVERTER 48V 504W |
3,464 |
|
数据手册 |
TXLN 500 (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 48V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 504W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.60" H (230.0mm x 127.0mm x 40.6mm) | ||
|
CSU800AP-3-60112V AND 12VSB OUTPUT, 800W 1U X |
139 |
|
数据手册 |
CSU800AP (800W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 164 ~ 320 VDC | 12.2V | - | - | - | - | - | 66.7 A | - | - | - | - | - | 814W | ITE (Commercial) | - | 0°C ~ 55°C (With Derating) | DC Input Capable, Hot Swappable, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) | ||
|

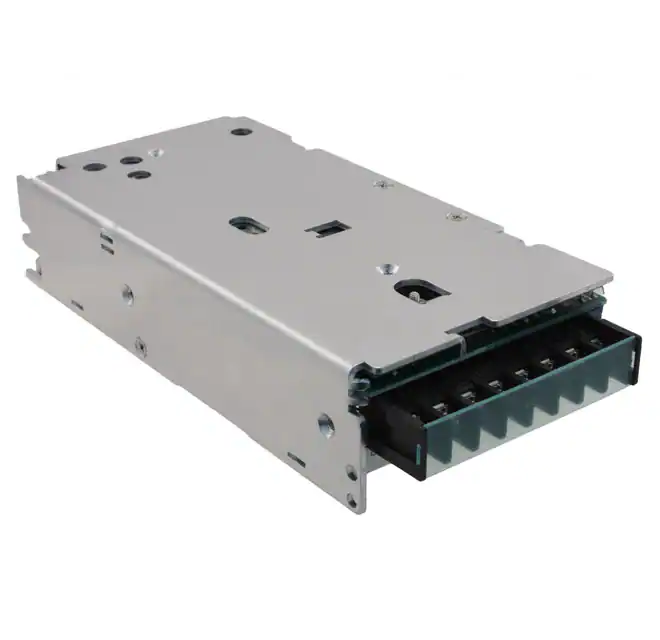

JWT75-5FF/AAC/DC CONVERTER 5V +/-15V 75W |
142 |
|
数据手册 |
JWT (75W) | Bulk | Not For New Designs | Enclosed | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 3.2 A | 500 mA | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.65" H (188.0mm x 91.9mm x 41.9mm) | ||
|

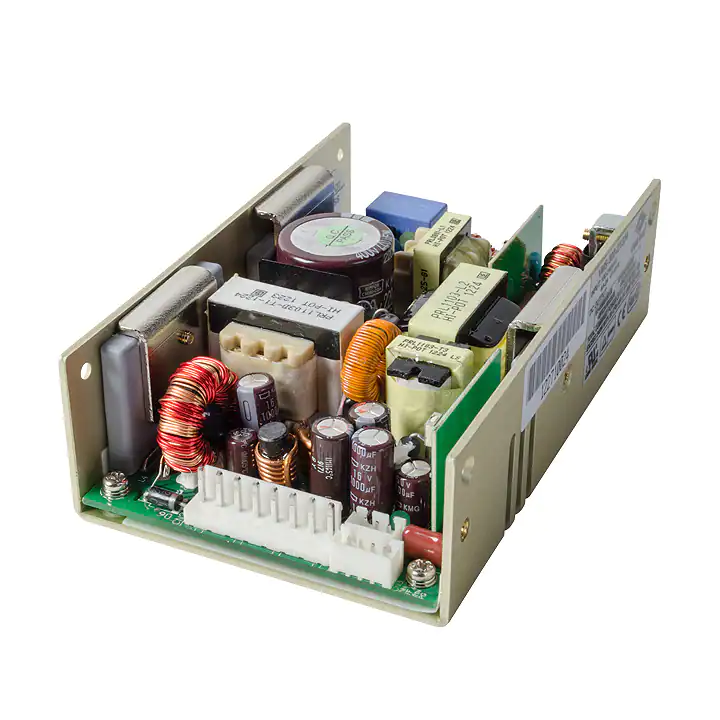

VMS-300-D1224AC/DC CONVERTER 12V 24V 120W |
2,123 |
|
数据手册 |
VMS-300 (300W) | Tray | Active | Open Frame | 2 | 90 ~ 264 VAC | 12V | 24V | - | - | - | - | 10 A | 5 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | ||
|
|
MAP30-1005GAC/DC CONVERTER 5V 30W |
4,981 |
|
数据手册 |
MAP30 (30W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.00" L x 5.00" W x 1.16" H (76.2mm x 127.0mm x 29.5mm) | ||
|
TAAM700-14CAC/DC CONVERTER 24V 700W |
2,856 |
|
数据手册 |
TAAM700 (240mW) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 29.16 A | - | - | - | - | - | 700W | Medical | 5.656 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.70" L x 3.66" W x 1.61" H (170.2mm x 93.0mm x 40.9mm) | ||
|
MAP55-4004GAC/DC CNVRTR 5V 24V +/-15V 55W |
2,686 |
|
数据手册 |
MAP55 (55W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5V | 24V | -15V | 15V | - | - | 6 A | 1.5 A | 500 mA | 500 mA | - | - | 55W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 3.27" W x 1.60" H (152.4mm x 83.1mm x 40.6mm) | ||
|
SE-1500-48AC/DC CONVERTER 48V 1502W |
3,917 |
|
数据手册 |
SE-1500 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 31.3 A | - | - | - | - | - | 1502W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) | ||
|
|
MAP110-4200GAC/DC CNVRTR 12V 24V -12V 5V 80W |
3,222 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 12V | 24V | -12V | 5V | - | - | 5 A | 4 A | 1 A | 2 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) |
