| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

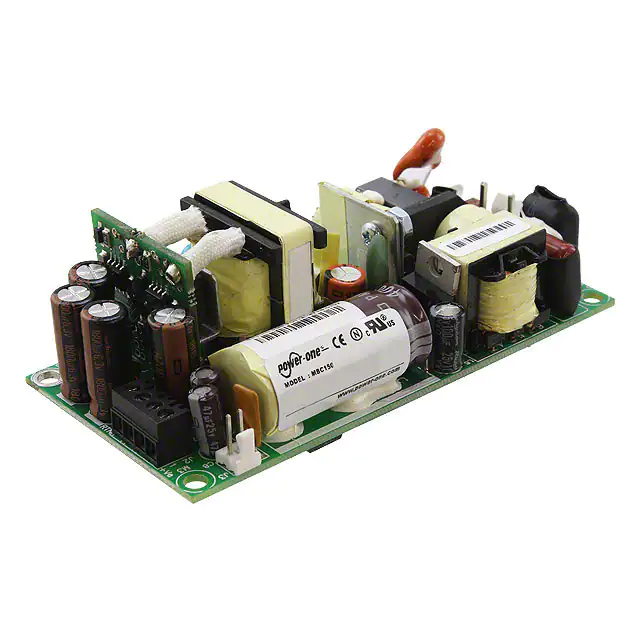

MBC150-1005G-2AC/DC CONVERTER 5V 110/150W Bel Power Solutions |
2,197 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
MBC150-1T05G-2AC/DC CONVERTER 5V 110/150W Bel Power Solutions |
1,417 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
MBC150-1015G-2AC/DC CONVERTER 15V 110/150W Bel Power Solutions |
3,495 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
MBC150-1T15G-2AC/DC CONVERTER 15V 110/150W Bel Power Solutions |
4,222 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
MBC150-1048G-2AC/DC CONVERTER 48V 110/150W Bel Power Solutions |
1,625 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
MBC150-1T48G-2AC/DC CONVERTER 48V 110/150W Bel Power Solutions |
2,461 |
|
数据手册 |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
|
MBC201-1T30G-2AC/DC CONVERTER 30V 160/200W Bel Power Solutions |
1,647 |
|
数据手册 |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
|
MBC201-1048G-2AC/DC CONVERTER 48V 160/200W Bel Power Solutions |
3,893 |
|
数据手册 |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
|
MBC201-1T48G-2AC/DC CONVERTER 48V 160/200W Bel Power Solutions |
1,522 |
|
数据手册 |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
|
MBC201-1015G-2AC/DC CONVERTER 15V 160/200W Bel Power Solutions |
2,932 |
|
数据手册 |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
