交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTPS-24-WA-70024VDC 0.8 AMP WA PS |
3,843 |
|
数据手册 |
N-TRON® | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
|
VI-RU000-EWWWAC/DC CONVERTER 100W |
3,769 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
PCM-400-D0512-UAC/DC CONVERTER 5V 12V 180W |
2,318 |
|
数据手册 |
PCM-400 (400W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 36 A | 15 A | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
PCM-400-D0548-UAC/DC CONVERTER 5V 48V 180W |
3,284 |
|
数据手册 |
PCM-400 (400W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 5V | 48V | - | - | - | - | 36 A | 3.75 A | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|

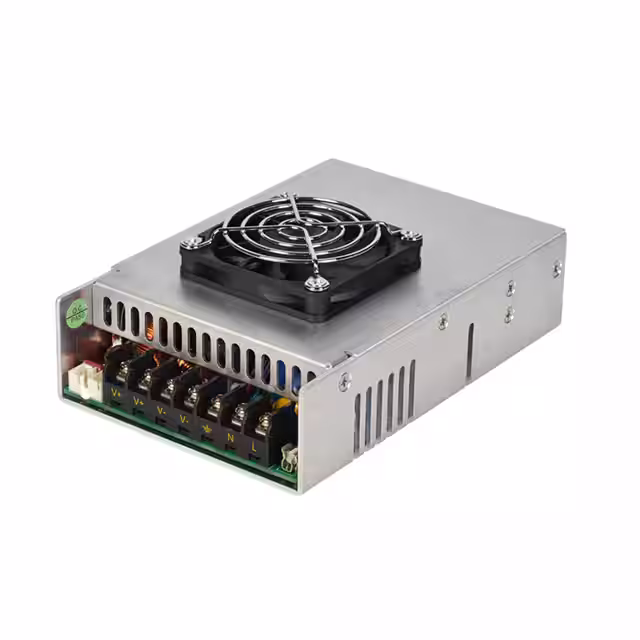

PCM-400-D0512-CFAC/DC CONVERTER 5V 12V 320W |
4,466 |
|
数据手册 |
PCM-400 (400W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 15 A | 13.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 2.15" H (152.4mm x 101.6mm x 54.5mm) | ||
|

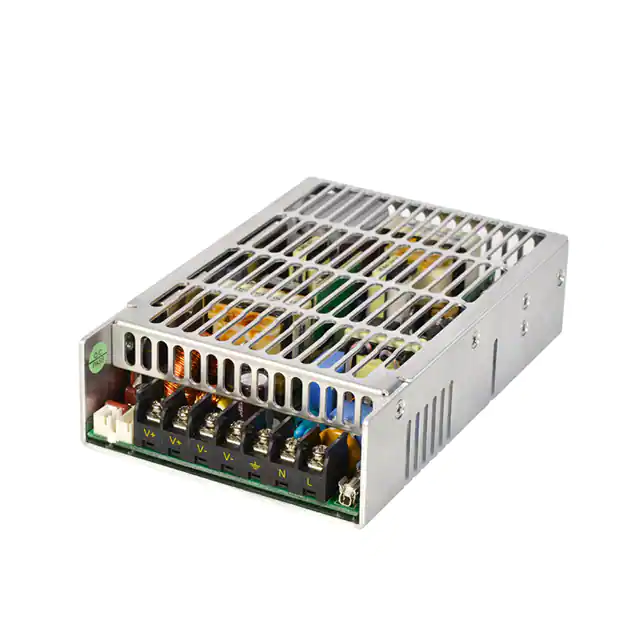

PCM-400-D0512-CNFAC/DC CONVERTER 5V 12V 180W |
3,476 |
|
数据手册 |
PCM-400 (400W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 36 A | 15 A | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.9mm) | ||
|
|
PCM-400-D0524-CNFAC/DC CONVERTER 5V 24V 180W |
2,985 |
|
数据手册 |
PCM-400 (400W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | 24V | - | - | - | - | 36 A | 7.5 A | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.9mm) | ||
|
VMS-300-D0512AC/DC CONVERTER 5V 12V 120W |
3,496 |
|
数据手册 |
VMS-300 (300W) | Tray | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 24 A | 10 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | ||
|

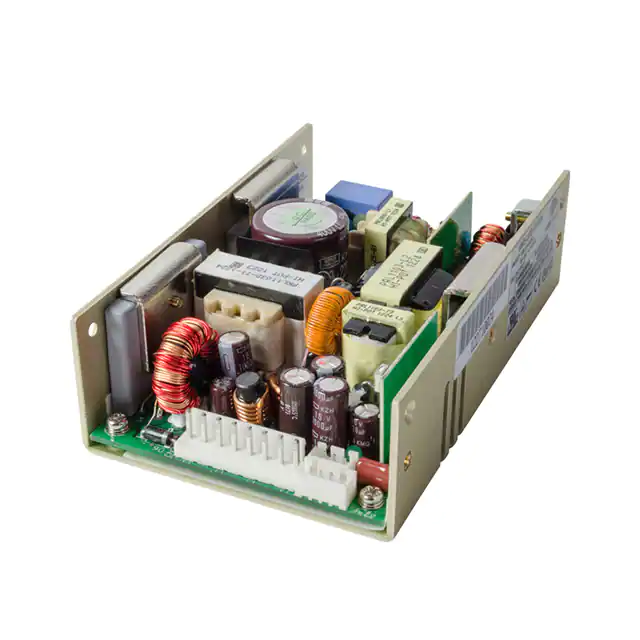

VMS-300-D0512-CFAC/DC CONVERTER 5V 12V 120W |
3,528 |
|
数据手册 |
VMS-300-CF (300W) | Tray | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 24 A | 10 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 2.00" H (127.0mm x 81.3mm x 50.8mm) | ||
|
VMS-300-D0512-CFSAC/DC CONVERTER 5V 12V 120W |
2,152 |
|
数据手册 |
VMS-300-CFS (300W) | Tray | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 24 A | 10 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.50" L x 3.20" W x 1.60" H (165.1mm x 81.3mm x 40.6mm) | ||
|

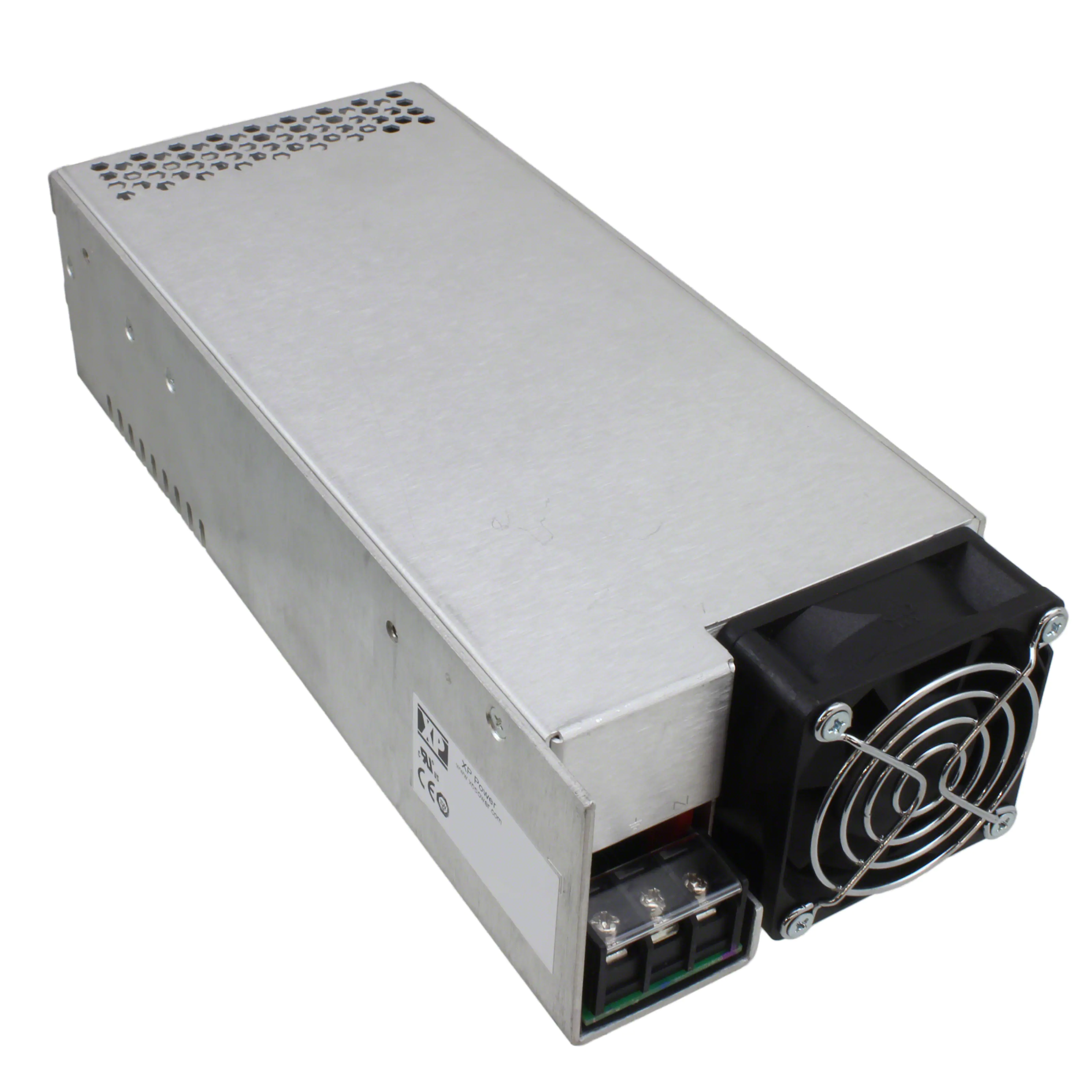

HHP650PS12AC/DC CONVERTER 12V 607W |
3,175 |
|
数据手册 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 607W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) | ||
|
|
HHP650PS15AC/DC CONVERTER 15V 607W |
4,419 |
|
数据手册 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 607W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) | ||
|
|
HHP650PS24AC/DC CONVERTER 24V 657W |
3,571 |
|
数据手册 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 657W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) | ||
|
|
HHP650PS28AC/DC CONVERTER 28V 651W |
3,600 |
|
数据手册 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 28V | - | - | - | - | - | 23 A | - | - | - | - | - | 651W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) | ||
|
|
HHP650PS48AC/DC CONVERTER 48V 657W |
2,287 |
|
数据手册 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 13.5 A | - | - | - | - | - | 657W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) | ||
|

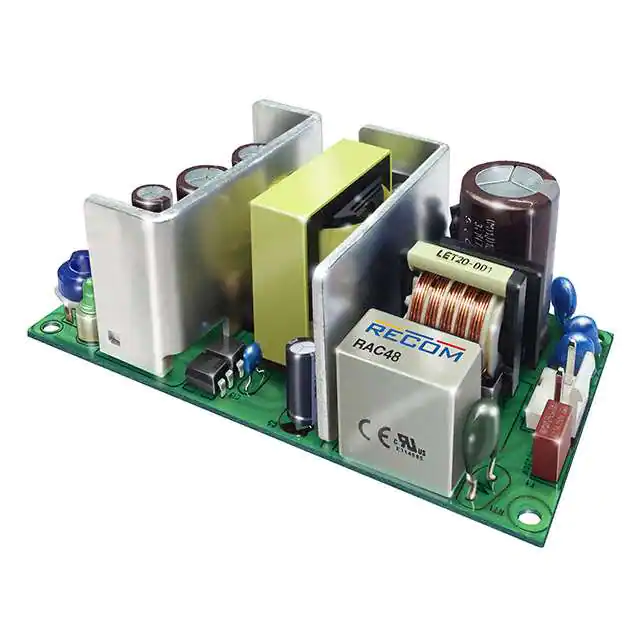

RAC48-05S/OFAC/DC CONVERTER 5V 48W |
3,637 |
|
数据手册 |
POWERLINE RAC48/OF (48W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
RAC48-12S/OFAC/DC CONVERTER 12V 48W |
2,324 |
|
数据手册 |
POWERLINE RAC48/OF (48W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 4 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
RAC48-15S/OFAC/DC CONVERTER 15V 48W |
3,707 |
|
数据手册 |
POWERLINE RAC48/OF (48W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
RAC60-12S/OFAC/DC CONVERTER 12V 60W |
2,565 |
|
数据手册 |
POWERLINE RAC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
RAC60-15S/OFAC/DC CONVERTER 15V 60W |
4,705 |
|
数据手册 |
POWERLINE RAC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
