交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

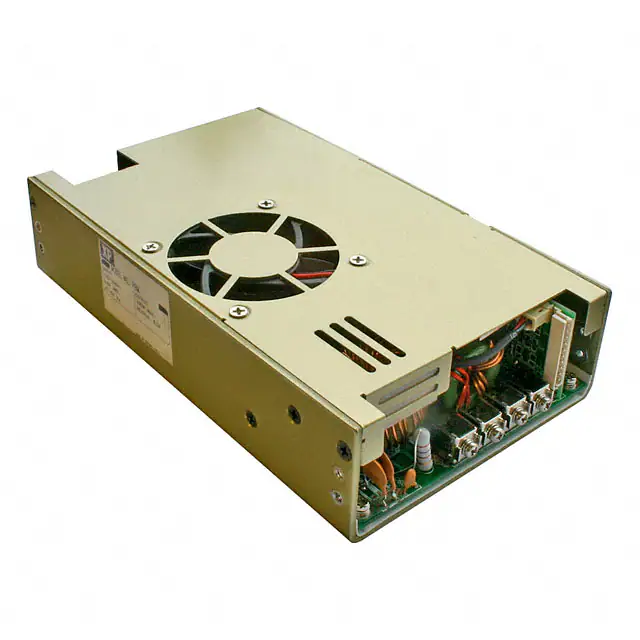

PBM200PS15-CAC/DC CONVERTER 15V 200W |
3,223 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
|
PBM200PS24-CAC/DC CONVERTER 24V 200W |
3,601 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
|
PBM200PS48-CAC/DC CONVERTER 48V 200W |
3,333 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
|
PBM200PT02-CAC/DC CONVERTER 5.1V +/-12V 200W |
4,864 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 3 | 90 ~ 264 VAC | 5.1V | 12V | -12V | - | - | - | 30 A | 8 A | 4 A | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
|
PBM200PT03-CAC/DC CONVERTER 5.1V +/-15V 200W |
1,322 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 3 | 90 ~ 264 VAC | 5.1V | 15V | -15V | - | - | - | 30 A | 6 A | 4 A | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
|
PBM200PT04-CAC/DC CONVERTER 5.1V 12V 200W |
3,019 |
|
数据手册 |
PBM200 (200W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC | 5.1V | 12V | - | - | - | - | 30 A | 8 A | - | - | - | - | 200W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | ||
|
PBM300PQ01-CAC/DC CNVRT 3.3V 5.1V 2X12V 300W |
2,128 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5.1V | 12V | 12V | - | - | 35 A | 22 A | 4 A | 4 A | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PQ03-CAC/DC CNVRTR 5.1V 2X15V 24V 300W |
4,584 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 5.1V | 15V | 15V | 24V | - | - | 35 A | 8 A | 4 A | 2.5 A | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PQ07-CAC/DC CNVRTR 5.1V 24V 2X12V 300W |
3,535 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 5.1V | 24V | 12V | 12V | - | - | 35 A | 5 A | 4 A | 4 A | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PS03-CAC/DC CONVERTER 3.3V 300W |
2,924 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PS12-CAC/DC CONVERTER 12V 300W |
3,016 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PS24-CAC/DC CONVERTER 24V 300W |
1,309 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
|
PBM300PS48-CAC/DC CONVERTER 48V 300W |
4,498 |
|
数据手册 |
PBM300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 1.75" H (190.5mm x 114.3mm x 44.5mm) | ||
|
2943903AC/DC CONVERTER 5V 3W |
1,563 |
|
数据手册 |
EMG 30 | Bulk | Obsolete | Enclosed | 1 | 10 ~ 16 VAC | 5V | - | - | - | - | - | 500 mA | - | - | - | - | - | 3W | ITE (Commercial) | - | 0°C ~ 55°C (With Derating) | DC Input Capable, IP20 | Chassis Mount | 2.95" L x 1.26" W x 2.64" H (75.0mm x 32.0mm x 67.1mm) | ||
|
|
2943929AC/DC CONVERTER 15V 8W |
1,319 |
|
数据手册 |
EMG 30 | Bulk | Obsolete | Enclosed | 1 | 18 ~ 23 VAC | 15V | - | - | - | - | - | 500 mA | - | - | - | - | - | 8W | ITE (Commercial) | - | 0°C ~ 55°C (With Derating) | DC Input Capable, IP20 | Chassis Mount | 2.95" L x 1.26" W x 2.64" H (75.0mm x 32.0mm x 67.1mm) | ||
|
BCS100US13-CAC/DC CONVERTER 2X13.8V 100W |
4,910 |
|
数据手册 |
BCS (100W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 13.8V | 13.8V | - | - | - | - | 7.3 A | 2.8 A | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.09" L x 3.83" W x 1.47" H (129.5mm x 97.5mm x 37.5mm) | ||
|
|
BCS100US27-CAC/DC CONVERTER 2X27.6V 100W |
3,592 |
|
数据手册 |
BCS (100W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 27.6V | 27.6V | - | - | - | - | 3.65 A | 1.7 A | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.09" L x 3.83" W x 1.47" H (129.5mm x 97.5mm x 37.5mm) | ||
|

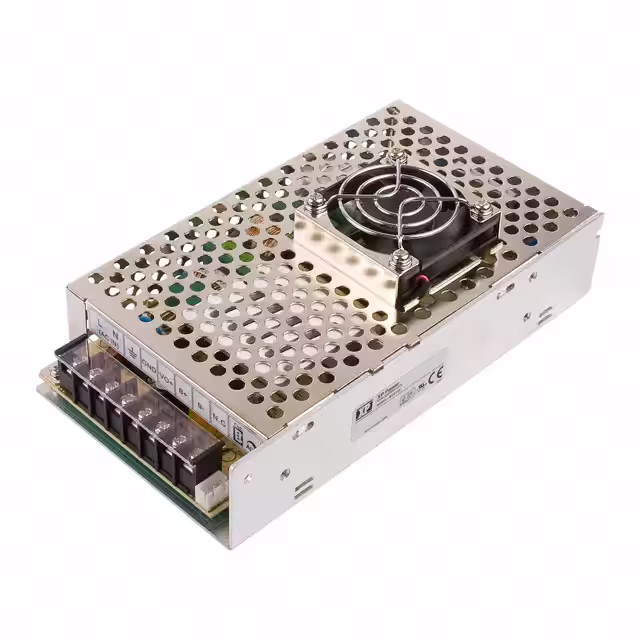

BCS155PS13-CAC/DC CONVERTER 2X13.8V 155W |
2,233 |
|
数据手册 |
BCS (155W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 13.8V | 13.8V | - | - | - | - | 11.2 A | 3.88 A | - | - | - | - | 155W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.09" L x 3.83" W x 1.47" H (129.5mm x 97.5mm x 37.5mm) | ||
|
|
BCS155PS27-CAC/DC CONVERTER 2X27.6V 155W |
3,387 |
|
数据手册 |
BCS (155W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 27.6V | 27.6V | - | - | - | - | 5.6 A | 2.1 A | - | - | - | - | 155W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.09" L x 3.83" W x 1.47" H (129.5mm x 97.5mm x 37.5mm) | ||
|
|
BCS75US13-CAC/DC CONVERTER 2X13.8V 75W |
1,237 |
|
数据手册 |
BCS (75W) | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 13.8V | 13.8V | - | - | - | - | 5.5 A | 1.95 A | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.09" L x 3.83" W x 1.47" H (129.5mm x 97.5mm x 37.5mm) |
