交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

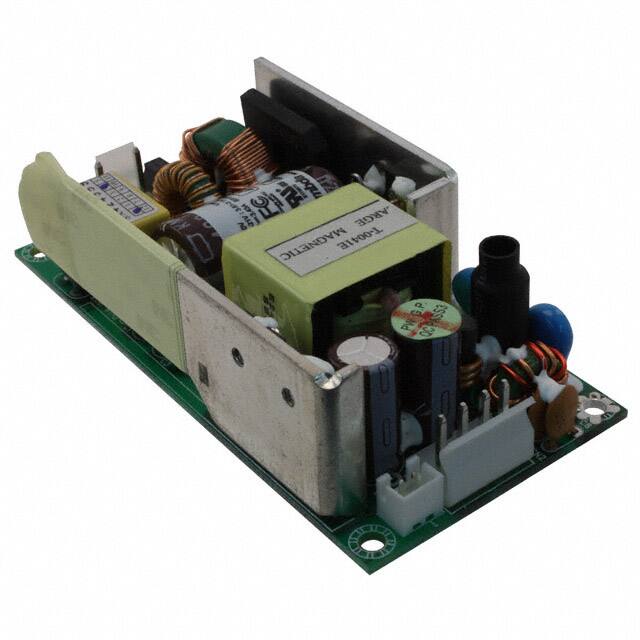

CSS65-19AC/DC CONVERTER 19V 65W |
1,078 |
|
数据手册 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 3.43 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
CSS65-36AC/DC CONVERTER 36V 65W |
1,322 |
|
数据手册 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.81 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
CSS65-48AC/DC CONVERTER 48V 65W |
2,378 |
|
数据手册 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
|
CSS65-5AC/DC CONVERTER 5V 65W |
2,921 |
|
数据手册 |
CSS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 65W | Medical | 4 kV | 0°C ~ 70°C | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | ||
|
C1U-W-1200-12-TA2CAC/DC CONVERTER 12V 1200W |
2,472 |
|
数据手册 |
C1U-W-1200 (1200W) | Bag | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 98.3 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 14.20" L x 5.50" W x 1.67" H (360.7mm x 139.7mm x 42.4mm) | ||
|
C1U-W-1200-48-TB2CAC/DC CONVERTER 48V 1200W |
2,597 |
|
数据手册 |
C1U-W-1200 (1200W) | Bag | Obsolete | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 24.6 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 14.20" L x 5.50" W x 1.67" H (360.7mm x 139.7mm x 42.4mm) | ||
|
D1U4-W-1600-12-HA2CAC/DC CONVERTER 12V 1600W |
4,570 |
|
数据手册 |
D1U4-W-1600 (1600W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 131.6 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 14.00" L x 4.00" W x 1.60" H (355.6mm x 101.6mm x 41.0mm) | ||
|
D1U4-W-1200-12-HC2CAC/DC CONVERTER 12V 1200W |
2,059 |
|
数据手册 |
D1U4-W-1200 (1200W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 98.3 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 14.00" L x 4.00" W x 1.60" H (355.6mm x 101.6mm x 41.0mm) | ||
|
D1U-W-1200-12-HA2CAC/DC CONVERTER 12V 1200W |
3,586 |
|
数据手册 |
D1U-W-1200 (1200W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 98.3 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
D1U-W-1600-12-HC2CAC/DC CONVERTER 12V 1600W |
2,755 |
|
数据手册 |
D1U-W-1600 (1600W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 131.6 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
|
D1U-W-1600-12-HA2CAC/DC CONVERTER 12V 1600W |
2,018 |
|
数据手册 |
D1U-W-1600 (1600W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 131.6 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
|
D1U-W-1200-48-HC2CAC/DC CONVERTER 48V 1200W |
4,826 |
|
数据手册 |
D1U-W-1200 (1200W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 24.6 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
|
D1U-W-1600-48-HA2CAC/DC CONVERTER 48V 1600W |
1,077 |
|
数据手册 |
D1U-W-1600 (1600W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 33 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
D1U-W-2000-48-HB2CAC/DC CONVERTER 48V 2000W |
1,906 |
|
数据手册 |
D1U-W-2000 (2000W) | Bag | Obsolete | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 41.3 A | - | - | - | - | - | 2000W | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) | ||
|
CF200-A12CAC/DC CONVERTER 12V 200W |
1,298 |
|
数据手册 |
- | Bag | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 16.6 A | - | - | - | - | - | 200W | ITE (Commercial) | - | -5°C ~ 50°C | Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.30" L x 5.00" W x 1.50" H (83.8mm x 127.0mm x 38.1mm) | ||
|
CF350-A12CAC/DC CONVERTER 12V 350W |
3,774 |
|
数据手册 |
- | Bag | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 29 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -5°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 6.80" L x 3.86" W x 1.40" H (172.7mm x 98.0mm x 35.6mm) | ||
|
CF350-A24CAC/DC CONVERTER 24V 350W |
1,977 |
|
数据手册 |
- | Bag | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -5°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 6.80" L x 3.86" W x 1.40" H (172.7mm x 98.0mm x 35.6mm) | ||
|
CPCI-A-3U-200CAC/DC CNVRTR 5V 3.3V +/-12V 200W |
1,562 |
|
数据手册 |
- | Bag | Obsolete | Enclosed | 4 | 90 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 25 A | 36 A | 5 A | 500 mA | - | - | 200W | ITE (Commercial) | 3 kV | -5°C ~ 50°C | Hot Swappable, PFC, Universal Input | Compact PCI® | 6.68" L x 1.59" W x 5.06" H (169.6mm x 40.3mm x 128.6mm) | ||
|
CPCI-A-3U-300CAC/DC CNVRTR 5V 3.3V +/-12V 300W |
4,878 |
|
数据手册 |
- | Bag | Obsolete | Enclosed | 4 | 90 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 30 A | 40 A | 5 A | 500 mA | - | - | 300W | ITE (Commercial) | 3 kV | -5°C ~ 50°C | Hot Swappable, PFC, Universal Input | Compact PCI® | 6.68" L x 1.59" W x 5.06" H (169.6mm x 40.3mm x 128.6mm) | ||
|
VGS-25-5AC/DC CONVERTER 5V 25W |
2,707 |
|
数据手册 |
VGS-25 (27W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) |
