交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VM-10005AC/DC CONVERTER 5V 100W |
4,305 |
|
数据手册 |
S8VM (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | ||
|
|
S8VM-10012AC/DC CONVERTER 12V 100W |
1,967 |
|
数据手册 |
S8VM (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | ||
|
S8VM-10015CAC/DC CONVERTER 15V 100W |
3,919 |
|
数据手册 |
S8VM (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | ||
|
|
S8VM-10015AC/DC CONVERTER 15V 100W |
4,698 |
|
数据手册 |
S8VM (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | ||
|
|
S8VM-10024AC/DC CONVERTER 24V 100W |
2,733 |
|
数据手册 |
S8VM (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | ||
|
|
S8VM-15005AC/DC CONVERTER 5V 150W |
2,569 |
|
数据手册 |
S8VM (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 27 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | ||
|
|
S8VM-15012AC/DC CONVERTER 12V 150W |
3,647 |
|
数据手册 |
S8VM (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | ||
|
S8VM-15015CAC/DC CONVERTER 15V 150W |
1,530 |
|
数据手册 |
S8VM (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | ||
|
|
S8VM-15015AC/DC CONVERTER 15V 150W |
3,711 |
|
数据手册 |
S8VM (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | ||
|
|
S8VM-15024AC/DC CONVERTER 24V 150W |
4,963 |
|
数据手册 |
S8VM (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | ||
|
VPU-S200-5AC/DC CONVERTER 5V 200W |
4,684 |
|
数据手册 |
VPU-S200 (200W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
|
VPU-S200-12AC/DC CONVERTER 12V 200W |
3,530 |
|
数据手册 |
VPU-S200 (200W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
|
VPU-S200-15AC/DC CONVERTER 15V 200W |
2,599 |
|
数据手册 |
VPU-S200 (200W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 13 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
|
VPU-S200-24AC/DC CONVERTER 24V 200W |
1,404 |
|
数据手册 |
VPU-S200 (200W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
|
VPU-S200-48AC/DC CONVERTER 48V 200W |
2,226 |
|
数据手册 |
VPU-S200 (200W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
HN24-3.6-A+GAC/DC CONVERTER 24V 86W |
1,918 |
|
数据手册 |
Linear N | Bulk | Obsolete | Linear | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 86W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.88" W x 2.75" H (177.8mm x 124.0mm x 69.9mm) | ||
|
F24-12-A+GAC/DC CONVERTER 24V 288W |
1,911 |
|
数据手册 |
Linear F | Bulk | Obsolete | Linear | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 12 A | - | - | - | - | - | 288W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 16.75" L x 4.88" W x 3.50" H (425.5mm x 124.0mm x 88.9mm) | ||
|

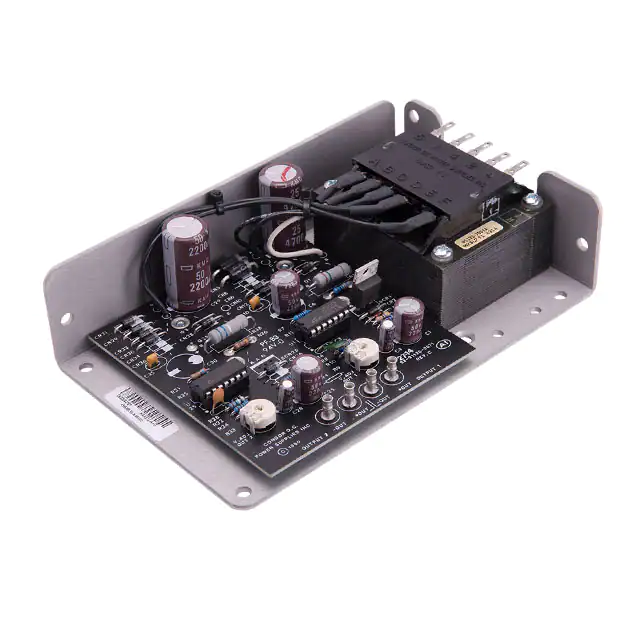

HAA15-0.8-A+GAC/DC CONVERTER +/-15V 24W |
2,803 |
|
数据手册 |
Linear AA | Bulk | Obsolete | Linear | 2 | 100 ~ 264 VAC | 15V | -15V | - | - | - | - | 800 mA | 800 mA | - | - | - | - | 24W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.80" H (165.1mm x 101.6mm x 45.7mm) | ||
|
|
HAA5-1.5-OV-A+GAC/DC CONVERTER 2X5V 15W |
3,283 |
|
数据手册 |
Linear AA | Bulk | Obsolete | Linear | 2 | 100 ~ 240 VAC | 5V | 5V | - | - | - | - | 1.5 A | 1.5 A | - | - | - | - | 15W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.80" H (165.1mm x 101.6mm x 45.7mm) | ||
|

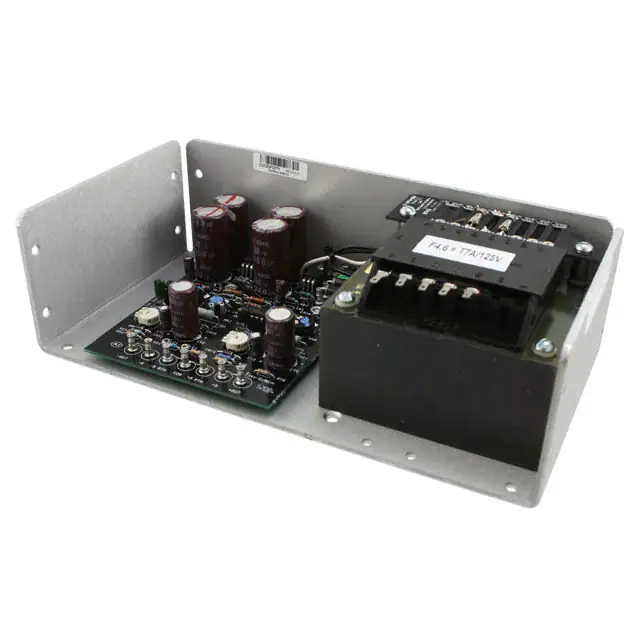

HCC512-A+GAC/DC CONVERTER 5V 12V 60W |
3,006 |
|
数据手册 |
Linear CC | Bulk | Obsolete | Linear | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 6 A | 2.5 A | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 9.38" L x 4.88" W x 2.75" H (238.3mm x 124.0mm x 69.9mm) |
