交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

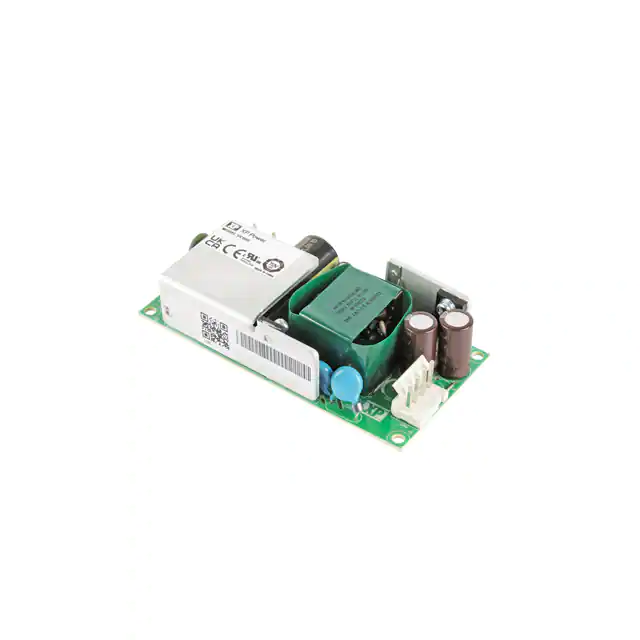

VCB60US24AC/DC CONVERTER 24V 60W XP Power |
1,687 |
|
数据手册 |
VCB60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) |
|
|
VCB60US05AC/DC CONVERTER 5V 40W XP Power |
1,108 |
|
数据手册 |
VCB60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) |
|
ECL05US05-TAC/DC CONVERTER 5V 5W XP Power |
1,243 |
|
数据手册 |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|

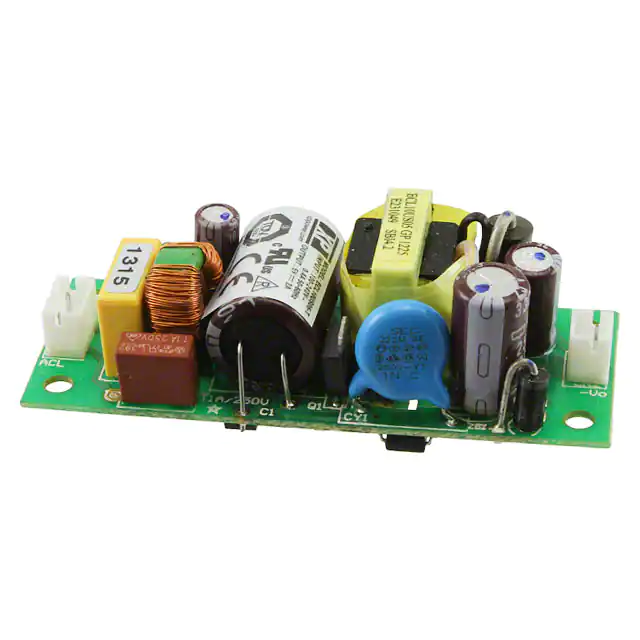

ECL10US05-TAC/DC CONVERTER 5V 10W XP Power |
4,107 |
|
数据手册 |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|

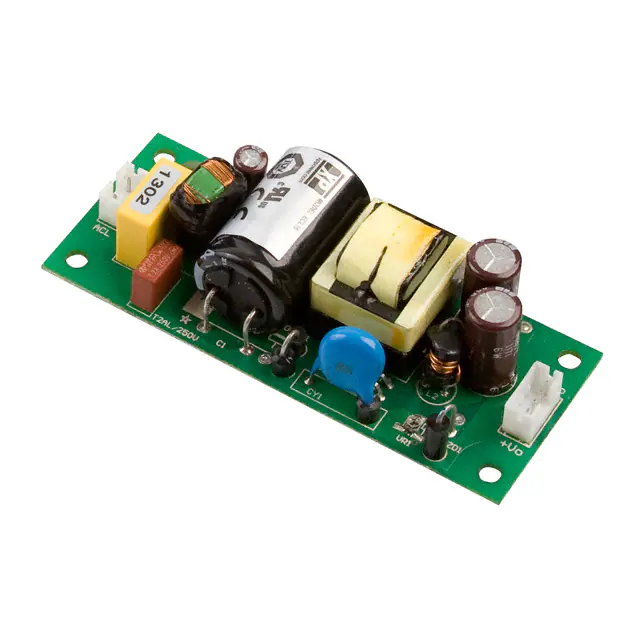

ECL15US12-TAC/DC CONVERTER 12V 15W XP Power |
1,795 |
|
数据手册 |
ECL (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
ECS65US28AC/DC CONVERTER 28V 65W XP Power |
4,119 |
|
数据手册 |
ECS (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 28V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
|
ECL15US15-SAC/DC CONVERTER 15V 15W XP Power |
3,634 |
|
数据手册 |
ECL (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) |
|

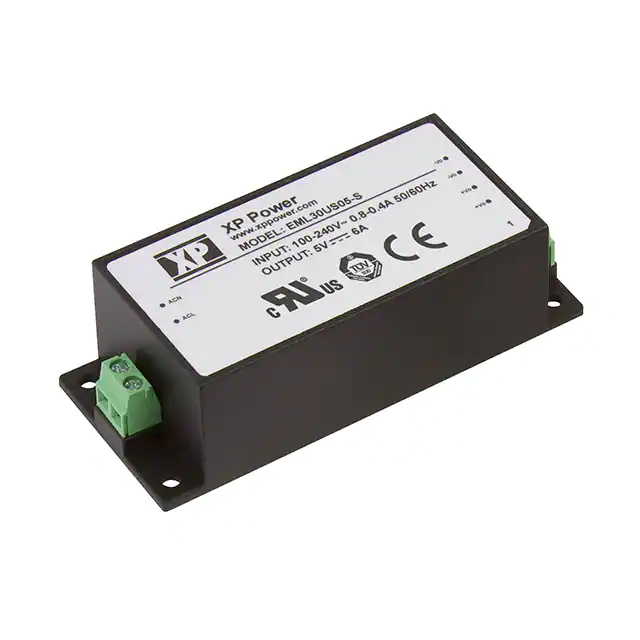

EML30US24-SAC/DC CONVERTER 24V 30W XP Power |
2,939 |
|
数据手册 |
EML30 (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
ECL25US12-SAC/DC CONVERTER 12V 25W XP Power |
1,944 |
|
数据手册 |
ECL (25W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
ECE60US09-SAC/DC CONVERTER 9V 60W XP Power |
3,152 |
|
数据手册 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
