交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM600-20B12ENCLOSED AC DC CONVERTER 600W 1 Mornsun America, LLC |
2,652 |
|
数据手册 |
LM600-20Bxx (600W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 255 ~ 370 VDC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.86" L x 4.88" W x 1.61" H (225.0mm x 124.0mm x 41.0mm) |
|
|
LOF120-20B54-CENCLOSED AC DC CONVERTER 1 OUTPU Mornsun America, LLC |
1,974 |
|
数据手册 |
LOF120-20Bxx-C (120W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 127 ~ 370 VDC | 54V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) |
|
|
PVA40-26B35ENCLOSED AC DC CONVERTERS 40W 1 Mornsun America, LLC |
3,574 |
|
数据手册 |
PVA40-26Bxx (40W) | Box | Not For New Designs | Enclosed | 1 | 460 ~ 1500 VAC | 35V | - | - | - | - | - | 1.15 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.2 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.69" L x 4.13" W x 1.58" H (144.5mm x 105.0mm x 40.0mm) |
|
|
PVA40-26B28ENCLOSED AC DC CONVERTERS 40W 1 Mornsun America, LLC |
2,233 |
|
数据手册 |
PVA40-26Bxx (40W) | Box | Not For New Designs | Enclosed | 1 | 460 ~ 1500 VAC | 28V | - | - | - | - | - | 1.43 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.2 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.69" L x 4.13" W x 1.58" H (144.5mm x 105.0mm x 40.0mm) |
|
|
PVA120-27B24R2OPEN FRAME AC DC CONVERTER 120W Mornsun America, LLC |
3,243 |
|
数据手册 |
PVA120-27BxxR2 (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 900 VAC, 120 ~ 1300 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.51" L x 3.54" W x 1.53" H (140.0mm x 90.0mm x 38.9mm) |
|

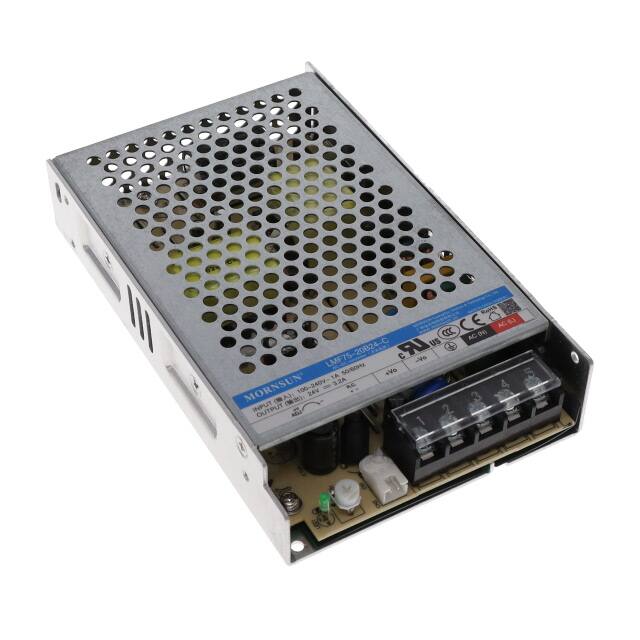

LMF75-20B24-CAC/DC CONVERTER 24V 77W Mornsun America, LLC |
3,017 |
|
数据手册 |
LMF75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

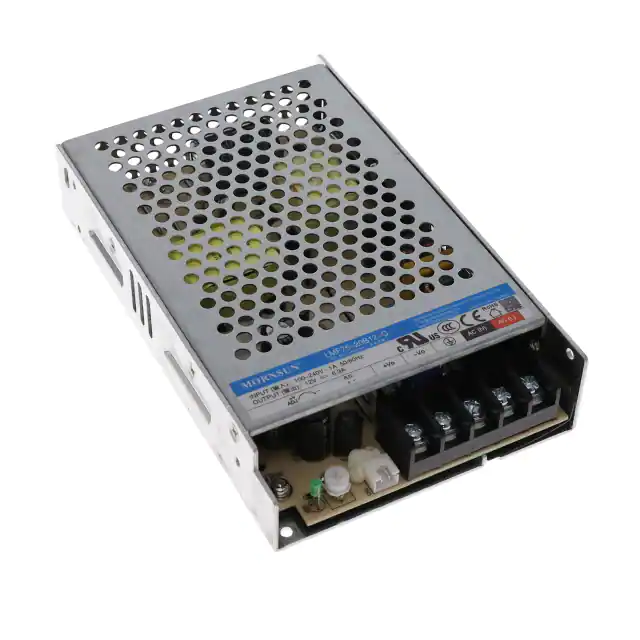

LMF75-20B12-QAC/DC CONVERTER 12V 76W Mornsun America, LLC |
4,356 |
|
数据手册 |
LMF75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
LMF75-20B12-CAC/DC CONVERTER 12V 76W Mornsun America, LLC |
3,730 |
|
数据手册 |
LMF75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
LMF75-20B24-QAC/DC CONVERTER 24V 77W Mornsun America, LLC |
4,584 |
|
数据手册 |
LMF75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

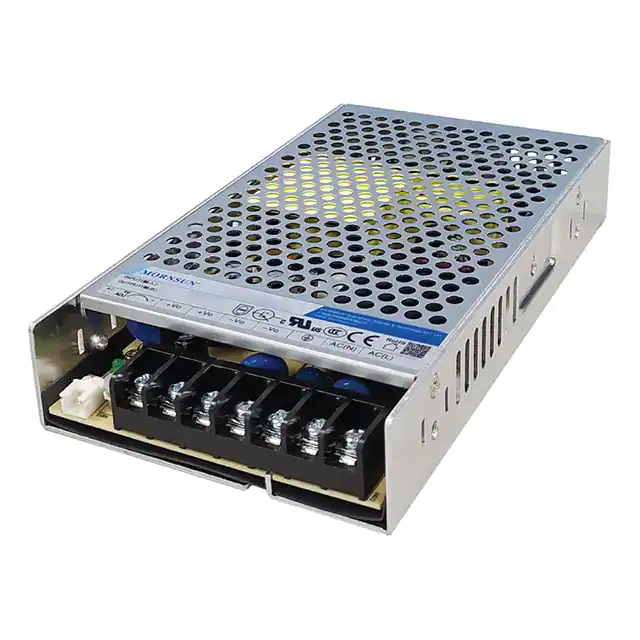

LMF150-23B12AC/DC CONVERTER 12V 150W Mornsun America, LLC |
2,456 |
|
数据手册 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
