交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM150-23B48R2-QAC/DC CONVERTER 48V 158W Mornsun America, LLC |
2,033 |
|
数据手册 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B36R2-CAC/DC CONVERTER 36V 155W Mornsun America, LLC |
3,712 |
|
数据手册 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B15R2-CAC/DC CONVERTER 15V 150W Mornsun America, LLC |
4,700 |
|
数据手册 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
LM50-23B24-QAC/DC CONVERTER 24V 53W Mornsun America, LLC |
2,126 |
|
数据手册 |
LM50-23Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

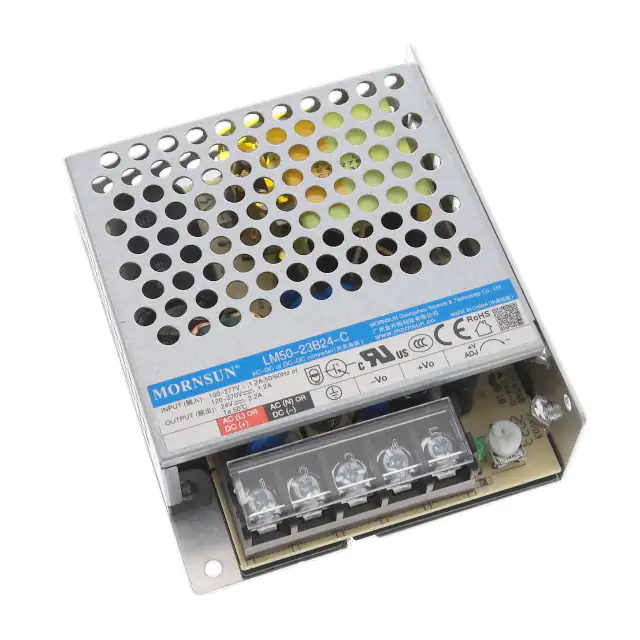

LM50-23B24-CAC/DC CONVERTER 24V 53W Mornsun America, LLC |
2,800 |
|
数据手册 |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LM50-20B24-CAC/DC CONVERTER 24V 53W Mornsun America, LLC |
3,192 |
|
数据手册 |
LM50-20Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-20B15-CAC/DC CONVERTER 15V 36W Mornsun America, LLC |
4,821 |
|
数据手册 |
LM35-20Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-20B15-QAC/DC CONVERTER 15V 36W Mornsun America, LLC |
3,024 |
|
数据手册 |
LM35-20Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-20B05-QAC/DC CONVERTER 5V 35W Mornsun America, LLC |
1,060 |
|
数据手册 |
LM35-20Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-23B05-QAC/DC CONVERTER 5V 35W Mornsun America, LLC |
3,227 |
|
数据手册 |
LM35-23Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
