交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

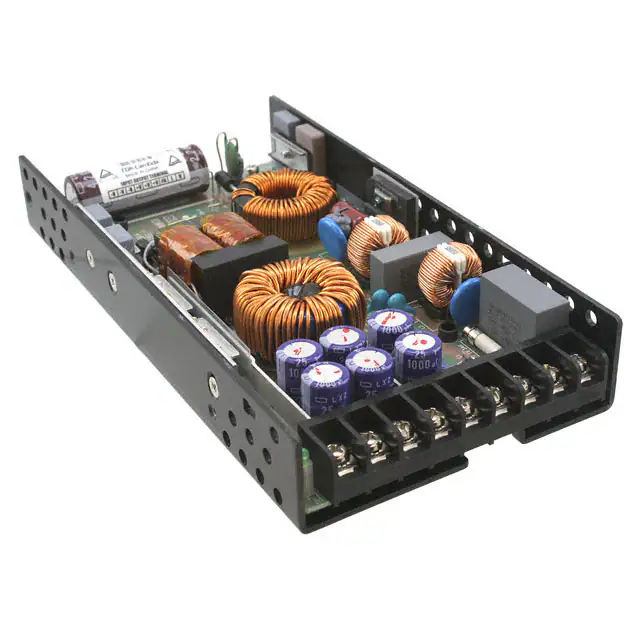

CUS250LD-12AC/DC CONVERTER 12V 250W TDK-Lambda |
4,639 |
|
数据手册 |
CUS250LD (250W) | Bulk | Not For New Designs | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 21 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm) |
|
|
CUS250LD-5AC/DC CONVERTER 5V 250W TDK-Lambda |
2,592 |
|
数据手册 |
CUS250LD (250W) | Bulk | Not For New Designs | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm) |
|
CUS400M-28/UAC/DC CONVERTER 28V 250W TDK-Lambda |
3,215 |
|
数据手册 |
CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 8.93 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.61" H (142.0mm x 90.0mm x 41.0mm) |
|
CUS250M-12/UJAC/DC CONVERTER 12V 250W TDK-Lambda |
3,251 |
|
数据手册 |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
|
|
CUS250M-24/UJAC/DC CONVERTER 24V 250W TDK-Lambda |
3,954 |
|
数据手册 |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
|
|
CUS250M-24/AJAC/DC CONVERTER 24V 250W TDK-Lambda |
2,610 |
|
数据手册 |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
|
|
CUS250M-12/FAC/DC CONVERTER 12V 250W TDK-Lambda |
3,448 |
|
数据手册 |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
|
|
CUS250M-24/FAC/DC CONVERTER 24V 250W TDK-Lambda |
2,452 |
|
数据手册 |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
|
HWS150A-12/HDAC/DC CONVERTER 12V 156W TDK-Lambda |
2,360 |
|
数据手册 |
HWS/HD (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 13 A | - | - | - | - | - | 156W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.30" L x 3.23" W x 1.46" H (160.0mm x 82.0mm x 37.0mm) |
|
ZWQ80-5223AC/DC CNVRTR 5V +/-12V 3.3V 80W TDK-Lambda |
1,789 |
|
数据手册 |
ZWQ (80W) | Bulk | Active | Open Frame | 4 | 85 ~ 265 VAC | 5V | 12V | -12V | 3.3V | - | - | 8 A | 2 A | 2 A | 7 A | - | - | 80W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) |
