交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QPSF-200-12AC/DC CONVERTER 12V 150W Qualtek |
3,546 |
|
数据手册 |
QPSF-200 (200W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.04" L x 3.01" W x 1.36" H (128.0mm x 76.5mm x 34.6mm) |
|
QPSF-200-24AC/DC CONVERTER 24V 150W Qualtek |
3,417 |
|
数据手册 |
QPSF-200 (200W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (202W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.04" L x 3.01" W x 1.36" H (128.0mm x 76.5mm x 34.6mm) |
|
|
QPSF-200-48AC/DC CONVERTER 48V 154W Qualtek |
1,448 |
|
数据手册 |
QPSF-200 (200W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 154W (202W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.04" L x 3.01" W x 1.36" H (128.0mm x 76.5mm x 34.6mm) |
|
QPWF-200-12AC/DC CONVERTER 12V 200W Qualtek |
3,376 |
|
数据手册 |
QPWF-200 (200W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|

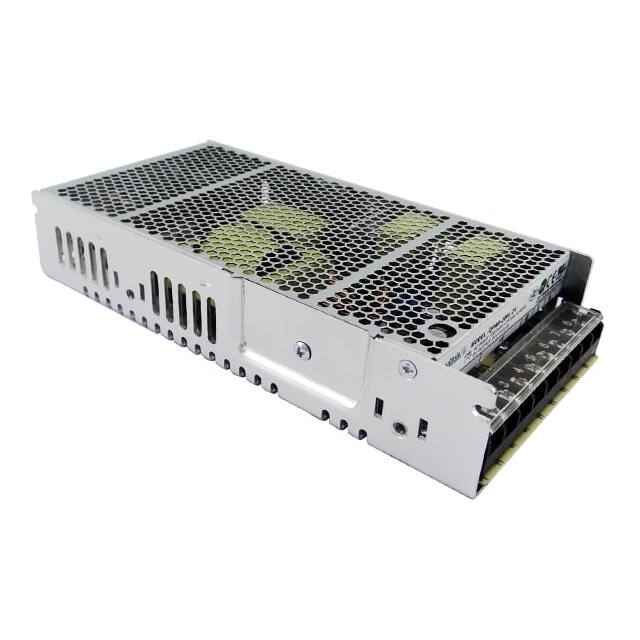

QPWF-200-24AC/DC CONVERTER 24V 200W Qualtek |
1,204 |
|
数据手册 |
QPWF-200 (200W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
QPWF-200-48AC/DC CONVERTER 48V 200W Qualtek |
2,893 |
|
数据手册 |
QPWF-200 (200W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
QPWF-200-5AC/DC CONVERTER 5V 200W Qualtek |
1,852 |
|
数据手册 |
QPWF-200 (200W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
QGKF-240-12AC/DC CONVERTER 12V 240W Qualtek |
4,293 |
|
数据手册 |
QGKF-240 (240W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
QGKF-240-24AC/DC CONVERTER 24V 240W Qualtek |
3,035 |
|
数据手册 |
QGKF-240 (240W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
QGKF-240-48AC/DC CONVERTER 48V 240W Qualtek |
1,298 |
|
数据手册 |
QGKF-240 (240W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 5 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
