交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OFI700A12-NOAC/DC CONVERTER 12V 701W Powerbox |
2,219 |
|
数据手册 |
OFI700A (700W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 58.4 A | - | - | - | - | - | 701W | ITE (Commercial) | - | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 4.96" W x 1.57" H (249.9mm x 126.0mm x 39.9mm) |
|
|
OFI1200A28-NOAC/DC CONVERTER 28V 1204W Powerbox |
1,398 |
|
数据手册 |
OFI1200A (1200W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 28V | - | - | - | - | - | 43 A | - | - | - | - | - | 1204W | ITE (Commercial) | 3 kV | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.58" H (260.0mm x 142.0mm x 40.1mm) |
|
|
OFI1200A48-OAC/DC CONVERTER 48V 1200W Powerbox |
1,357 |
|
数据手册 |
OFI1200A (1200W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.54" H (260.0mm x 142.0mm x 39.1mm) |
|
|
OFI1200A28-OAC/DC CONVERTER 28V 1204W Powerbox |
1,594 |
|
数据手册 |
OFI1200A (1200W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC | 28V | - | - | - | - | - | 43 A | - | - | - | - | - | 1204W | ITE (Commercial) | 3 kV | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.54" H (260.0mm x 142.0mm x 39.1mm) |
|
|
OFI1200A48-NOAC/DC CONVERTER 48V 1200W Powerbox |
2,897 |
|
数据手册 |
OFI1200A (1200W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.58" H (260.0mm x 142.0mm x 40.1mm) |
|

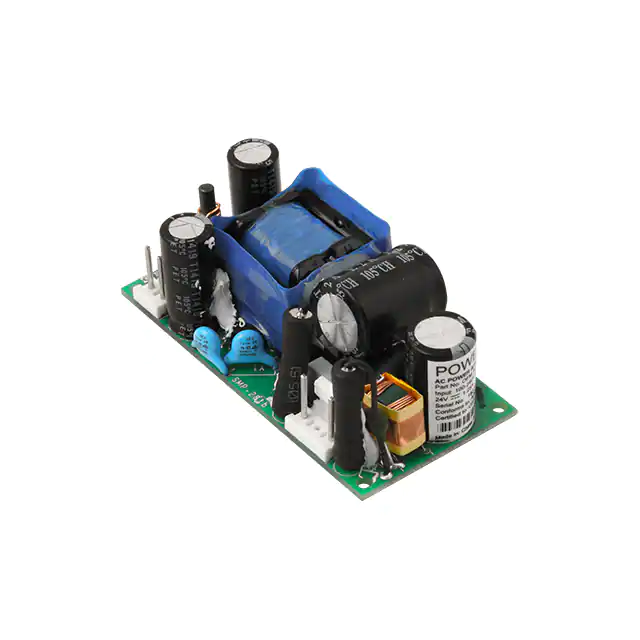

OFM305028AC/DC CONVERTER 24V 30W Powerbox |
4,636 |
|
数据手册 |
OFM30 (30W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 0.90" H (76.2mm x 38.1mm x 22.9mm) |
|
|
OFM305025AC/DC CONVERTER 12V 30W Powerbox |
1,816 |
|
数据手册 |
OFM30 (30W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 0.90" H (76.2mm x 38.1mm x 22.9mm) |
|
|
OFM305026AC/DC CONVERTER 15.2V 30W Powerbox |
2,173 |
|
数据手册 |
OFM30 (30W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15.2V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 0.90" H (76.2mm x 38.1mm x 22.9mm) |
|
OFM1005127AC/DC CONVERTER 18V 100W Powerbox |
3,679 |
|
数据手册 |
OFM100 (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 18V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.01" L x 4.02" W x 1.26" H (51.0mm x 102.0mm x 32.0mm) |
|
|
OFM1005126AC/DC CONVERTER 15V 100W Powerbox |
3,701 |
|
数据手册 |
OFM100 (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.01" L x 4.02" W x 1.26" H (51.0mm x 102.0mm x 32.0mm) |
