交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011383GRN-80-4003 OVP Integrated Power Designs |
1,787 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
|
1011251CHGRN-80-4001 CH Integrated Power Designs |
2,555 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 8 A | 5 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) |
|
|
1011253CHGRN-80-4003 CH Integrated Power Designs |
2,415 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) |
|
|
1011254CHGRN-80-4004 CH Integrated Power Designs |
3,408 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) |
|
|
1011252CHGRN-80-4002 CH Integrated Power Designs |
4,796 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 8 A | 5 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) |
|

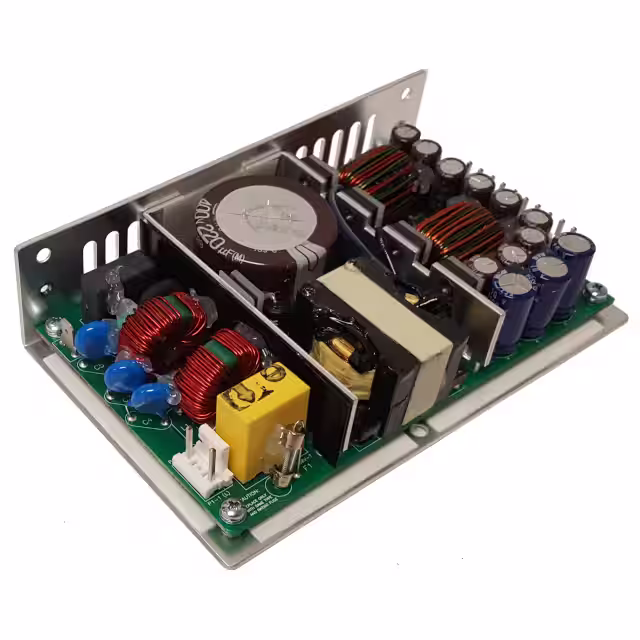

1011511CHGRN-80-4004-IO CH Integrated Power Designs |
4,757 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | 15V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
|
1011353CHGRN-80-4005 CH Integrated Power Designs |
4,398 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.5V | 5.2V | 18V | -18V | - | - | 3.5 A | 1 A | 1.5 A | 1.5 A | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1011375GRN-110-3001 OVP Integrated Power Designs |
2,718 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 12 A | 3 A | 3 A | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
|
1011246CHGRN-110-3002 CH Integrated Power Designs |
3,398 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 12 A | 3 A | 3 A | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) |
|
|
1011245CHGRN-110-3001 CH Integrated Power Designs |
3,836 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 12 A | 3 A | 3 A | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) |
