| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011027CHCONXT-325-1002,RE STBY CHCO Integrated Power Designs |
1,571 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011031CHCONXT-325-1006,RE STBY CHCO Integrated Power Designs |
1,031 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|

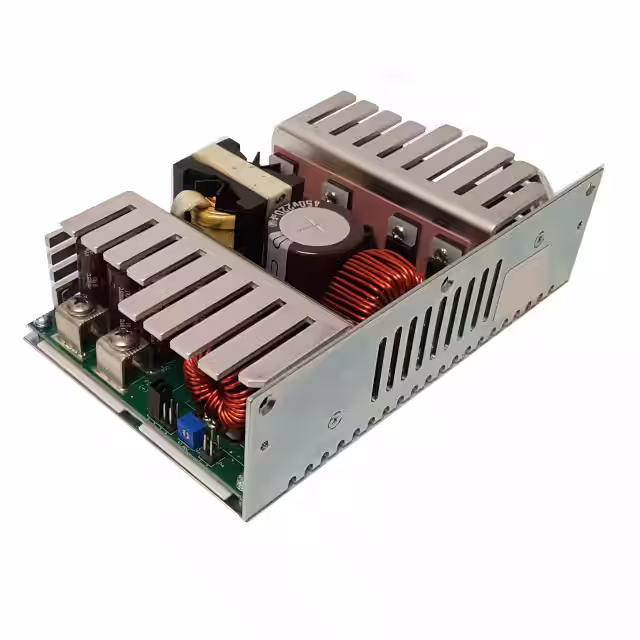

1011010CHNXT-325-1001,LS-RE CH Integrated Power Designs |
3,441 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011014CHNXT-325-1005,LS-RE CH Integrated Power Designs |
1,114 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 23.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011016CHNXT-325-1007,LS-RE CH Integrated Power Designs |
2,246 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011017CHNXT-325-1008,LS-RE CH Integrated Power Designs |
2,890 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011013CHNXT-325-1004,LS-RE CH Integrated Power Designs |
2,711 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011012CHNXT-325-1003,LS-RE CH Integrated Power Designs |
3,884 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011011CHNXT-325-1002,LS-RE CH Integrated Power Designs |
2,289 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
|
1011015CHNXT-325-1006,LS-RE CH Integrated Power Designs |
2,795 |
|
数据手册 |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
