| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

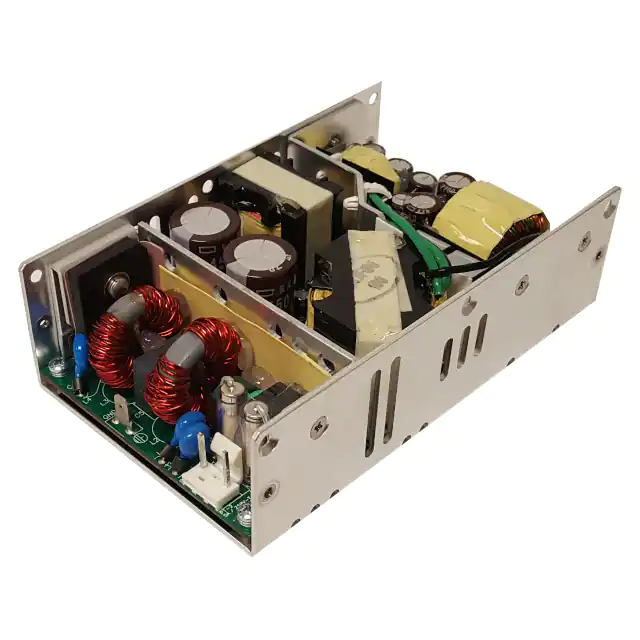

1011435CHGRN-200-4002 CH Integrated Power Designs |
3,385 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 30 A | 8 A | 2 A | 2 A | - | - | 200W | ITE (Commercial), Medical | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1011436CHGRN-200-4003 CH Integrated Power Designs |
2,012 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 30 A | 3 A | 2 A | 2 A | - | - | 200W | ITE (Commercial), Medical | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1011434CHGRN-200-4001 CH Integrated Power Designs |
2,906 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 30 A | 8 A | 2 A | 2 A | - | - | 187W | ITE (Commercial), Medical | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1011514CHGRN-200-4005 CH Integrated Power Designs |
3,494 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 24V | 5V | 12V | -12V | - | - | 6 A | 8 A | 2 A | 2 A | - | - | 200W | ITE (Commercial), Medical | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1011437CHGRN-200-4004 CH Integrated Power Designs |
3,753 |
|
数据手册 |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 30 A | 3 A | 2 A | 2 A | - | - | 200W | ITE (Commercial), Medical | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) |
|
1010716CHCOSRW-100-4012 CHCO Integrated Power Designs |
3,282 |
|
数据手册 |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 3.3V | 12V | -12V | - | - | 10 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) |
|
1010445CHCOSRW-100-4008 CHCO Integrated Power Designs |
4,153 |
|
数据手册 |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 3.3V | 12V | -5V | - | - | 10 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) |
|
1010272CHCOSRW-100-4004 CHCO Integrated Power Designs |
1,919 |
|
数据手册 |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5.2V | 12V | -12V | - | - | 10 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) |
|
1010469CHCOSRW-100-4010 CHCO Integrated Power Designs |
4,136 |
|
数据手册 |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 15V | 12V | 9V | - | - | 5 A | 4 A | 2 A | 2.5 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) |
|
1010414CHCOSRW-100-4007 CHCO Integrated Power Designs |
1,925 |
|
数据手册 |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 15V | 12V | -12V | - | - | 10 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) |
